Ammeter shunt wiring diagram for a. Unfortunately i didnt find any good resource about how to wireconnect it. Connect ammeter lamp 60 0 60 i only to existing instrument panel lighting circuit. You need a wiring diagram with an external shunt instead. If ammeter shows a positive charge when starter is engaged reverse.

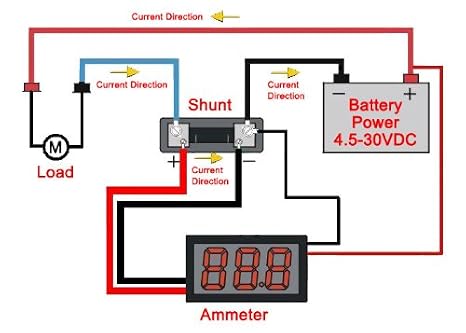

A dc ammeter and shunt works in a similar waya small amount of current that flows through the main wire is diverted to and measured by the meter. Analog meters have very fine internal wires that flex to enable the needle to move. How to wire digital dual display volt and ammeter. Battery 3 amp fuse voltage regulator starter motor bulkhead connector dash panel ammeter connector and instrument cluster connector.

The image we see below is the shunt type ammeter circuit diagram for the 1961 chevrolet trucks. You may have to register before you can post. Here is the original ss wiring diagram. Also when measuring current that exceeds 10a which can be handled.

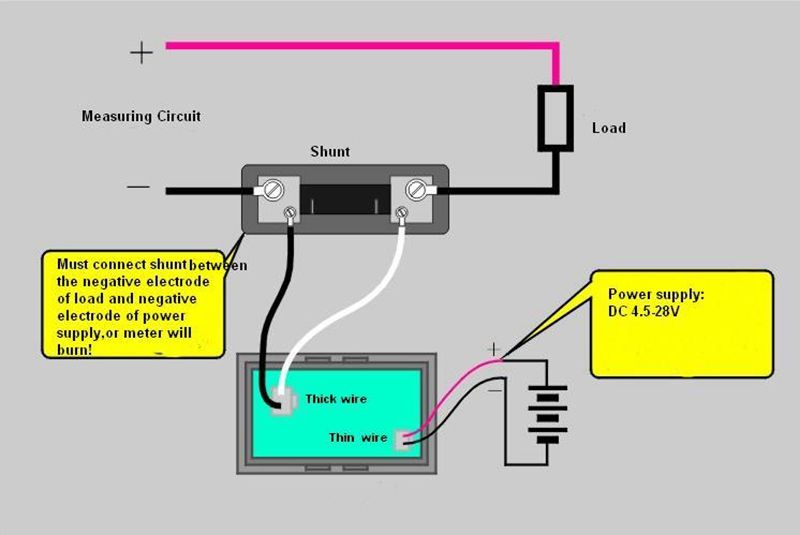

In this video i show how to properly wire an ammeter amp gauge with a shunt to measure amps. Shunt near the shunt connections and identify as positive the wire to be attached to the shunt near the main conductor coming from the source. It looks for the current drop across a resistor shunt and uses that instead of a direct current measurement. 1mm2 wire enough for 2 runs to the ammeter and shunt.

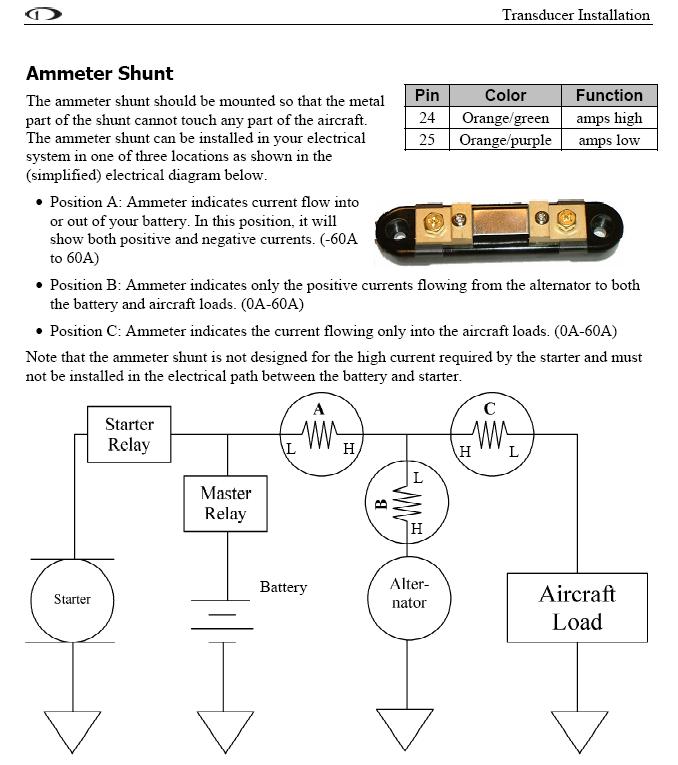

Hold your ammeter so it is the same as shown in the diagram above. Installing an ammeter shunt. Identify as negative the conductor connected nearest the load. The main power goes from the battery to one side of the shunt via a 12 gauge red wire and then from the other side of the shunt to the horn relay via a 12 gauge black wire.

Once i bought a popular chinese volt and ammeter gauge with 100v10a ratings. The top most cable probably red needs connecting to the boats 12v supply. Plug in the white connector to the socket at the top right. Digital ammetervoltmeter with shunt wiring if this is your first visit be sure to check out the faq by clicking the link above.

Click the register link above to proceed. The circuit diagram consist of these following components. Bought an ammeter and shunt from china with no instructions how to wire it.
