E30 fuse box k9. I recently bought a used bmw and the label is missing. Identifying and legend fuse box bmw 3 series 1982 1994. My questions about this and all the relays would be. Additional relays in front of the fusebox just on the forward part of the left strut is an additional little box that contains the master relay white and one or two fuel relays orange.

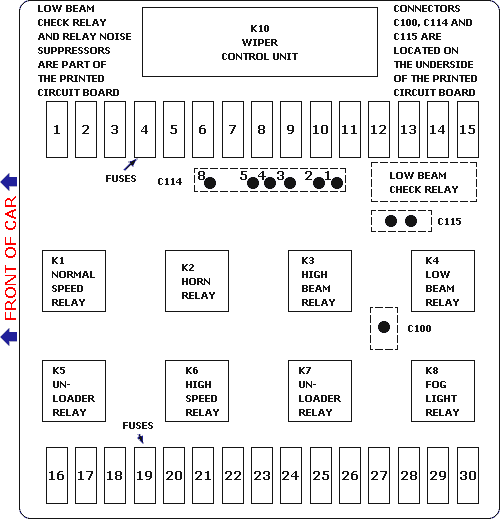

Fuse and relay location. Bmw m3 forum e30 m3 k9 in fuse box question look at this link. Automatic transmission relays and switches brake relays and switches headlight motors relays and switches ignition relays and switches seat motors relays and switches wiper and washer motors relays and switches. I have a 1986 325es.

Download the e30 fuse. The fuse box is where you want to start with many problems you may encounter with your e30. 1 would a missing relay in the fuse box in this case te k9 be a factor in odd blinker behavior in the left blinker or would they be completely unrelated. The fuse box power distribution box with spare fuses relays and plastic tweezers is located in the engine compartment on the left closest to the windscreen.

One thing you can always do to test a relay easily is if your horn is working put that relay from k2 into the low beam k4 or other slot which youre trying to get working. Not sure what the k9 is or where to buy those. Take off the fuse box lid and use the plastic tweezers to pull out the fuse for the item of equipment which is not working. I need the information from the underside of the fuse panel cover for a 1989 325i.

K9 fog lights. While relays rarely go bad its still very possible. I dont know which fuse is for what accessory. Switches motors relays fuses wiring for bmw 3 series e30 1983 1991.

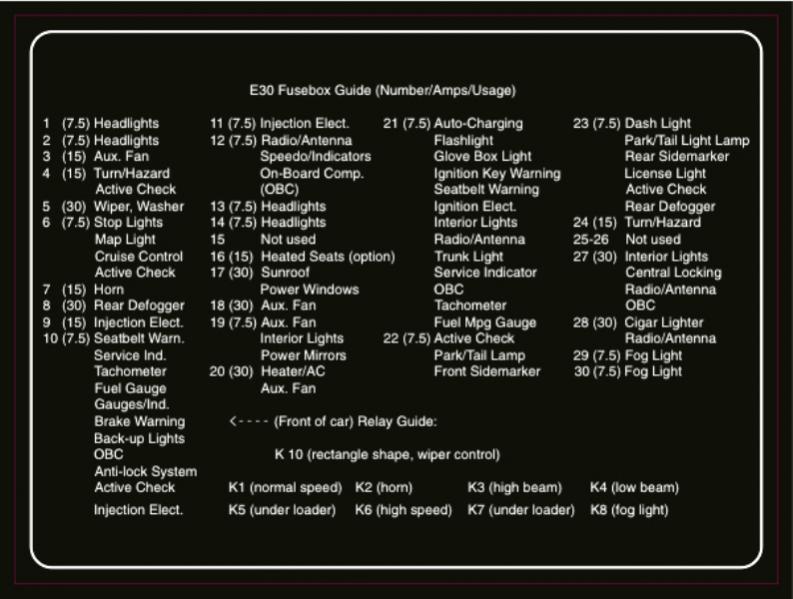

Bmw 3 series e30 325iconvertible 325is 325ix fuse box diagram us version 1987 1991.
