Off road light installation installing off road lights can be a simple straightforward task as long as you closely follow the instructions. Even though the process may seem as easy as 1 2 3 its important to pay attention to the specific gauge or amperage numbers determined for your specific vehicle and electrical load. In this video i will show you how to wire off road led lights with a relay and a switch on my 2014 jeep wrangler unlimited.

itil certification lookup mahindra tractor starter wiring diagram linkedin post template job sample character reference letter for a friend hotfix rhinestone templates headlight wiring diagram for 2007 dodge ram 2500 limiting and excess reagents worksheet answers korg volca stand template pdf

How To Wire A Relay For Off Road Led Lights Wiring

Aci Off Road Led Lights Instructions And Wiring Diagram

How To Wire A Relay For Off Road Led Lights Extreme Lights

Wiring diagram for off road lights inspirationa led light bar harness in jpg inside of kit 7.

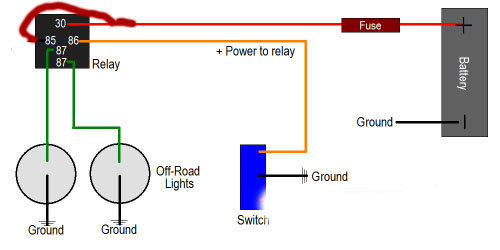

Wire diagram for off road led light. How to wire a relay for off road led lights. Learn what a relay is how it works and why you should use one. Having a relay switch is essential if you are wiring up a light bar that has a very large amp draw at all. 85 and 86 can be reversed.

The relay wiring kit for up to 180w light bar is ideal for these type of configurations. How to install off road lights on fj cruiser overland adventures led bar wiringgram relayg light rzr cree wiring kit 11 off road light wiring diagram 7 lights kit 10 led light bar wiring harness diagram elvenlabs com best of off road lights kit 9 how to wire offroad lights with a relay and switch. For example you could splice a wire off your high beam wire or off your backup light wire 86 connect to a ground. Written by robert reynolds on jan 27 2016.

If not with. In this guide well explain what a relay switch is why you need one and how to wire one up yourself. Learn how to wire a relay for off road led light bars and work lights. What if i dont always want my led lights to come on with my high beams or backup lights.
