Model variants are listed here and fluid capacities here. Cross reference the serial numbers and year of manufacture for the te 20 to 20 and to30 tractors. Just a quick video showing how we did the 6 volt to 12 volt conversion on a ferguson to 20.

georgia 4th grade math worksheets free printable calendar march 2020 pdf fuse hair finra compliance certification funeral program jehovah witness obituary sample free 2015 calendar template excel gala flyer template fitness business plan sample

Is This To 30 Wiring Correct Yesterday S Tractors

Ferguson To 20 Wiring Questions Harry Ferguson Forum

To20 6v Wiring Diagram Harry Ferguson Forum Yesterday S

Wiring diagrams of ferguson tractors both 6 and 12 volt systems.

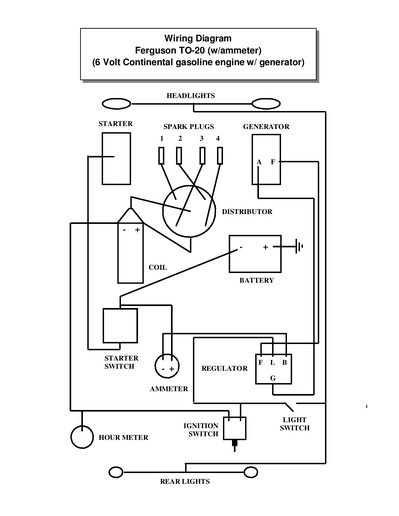

Wiring diagram for harry ferguson. Diesel 12v pony mh and ferguson 6v tef 20 standard diesel 12v te and tea 20 6v and 12v gas to 20 6v with ammeter to 20 6v with red light wiring diagram to 30 6v to. The ferguson te20 te denoting tractor england was the first tractor to be produced by harry ferguson in the uk. Harry ferguson tractor club of australia. You can also find other images like images wiring diagram images parts diagram images replacement parts images electrical diagram images repair manuals images engine diagram images engine scheme diagram images wiring harness diagram.

Electrical and lighting diagrams. The wiring diagrams are in pdf format so you may print directly from the diagram to your printer. Te20 manufactured by standard motor company england. The banner lane factory in coventry was originally an aero engine factory operated by the standard motor company for the british government during world war two.

Hosted on the fena site. A comprehensive list of ferguson resources information parts manuals clubs etc in a single one stop shop for information on ferguson tractors. This is the 12 volt wiring diagram i made while wiring my 1948. Ferguson to 30 diagrams here you are at our site this is images about ferguson to 30 diagrams posted by maria nieto in ferguson category on oct 22 2019.

The kit we used for this was akt0015kit contained all wiring brackets resistor and alternator. Wiring diagram ferguson to 30 continental gasoline engine w generator modified to 12 volt headlights generator a f starter 1 2 3 4. Harrys toolbox by bob sybrandy ferguson to 20 wiring and ammeter installation at a recent meeting of fena members in wakarusa in brian schultz of hamlet in raised a question about the wiring diagram for the to 20 with indicator light on our web site. We have aftermarket tractor parts and manuals for ferguson to20 12 volt wiring diagram tractors.

9n 2n 6v system fe 35 standard gas 12v fe 35 standard. Brian questioned the accuracy of the diagram indicating he followed the diagram.
