The units have two led lights that provide troubleshooting codes in the form of flash patterns.

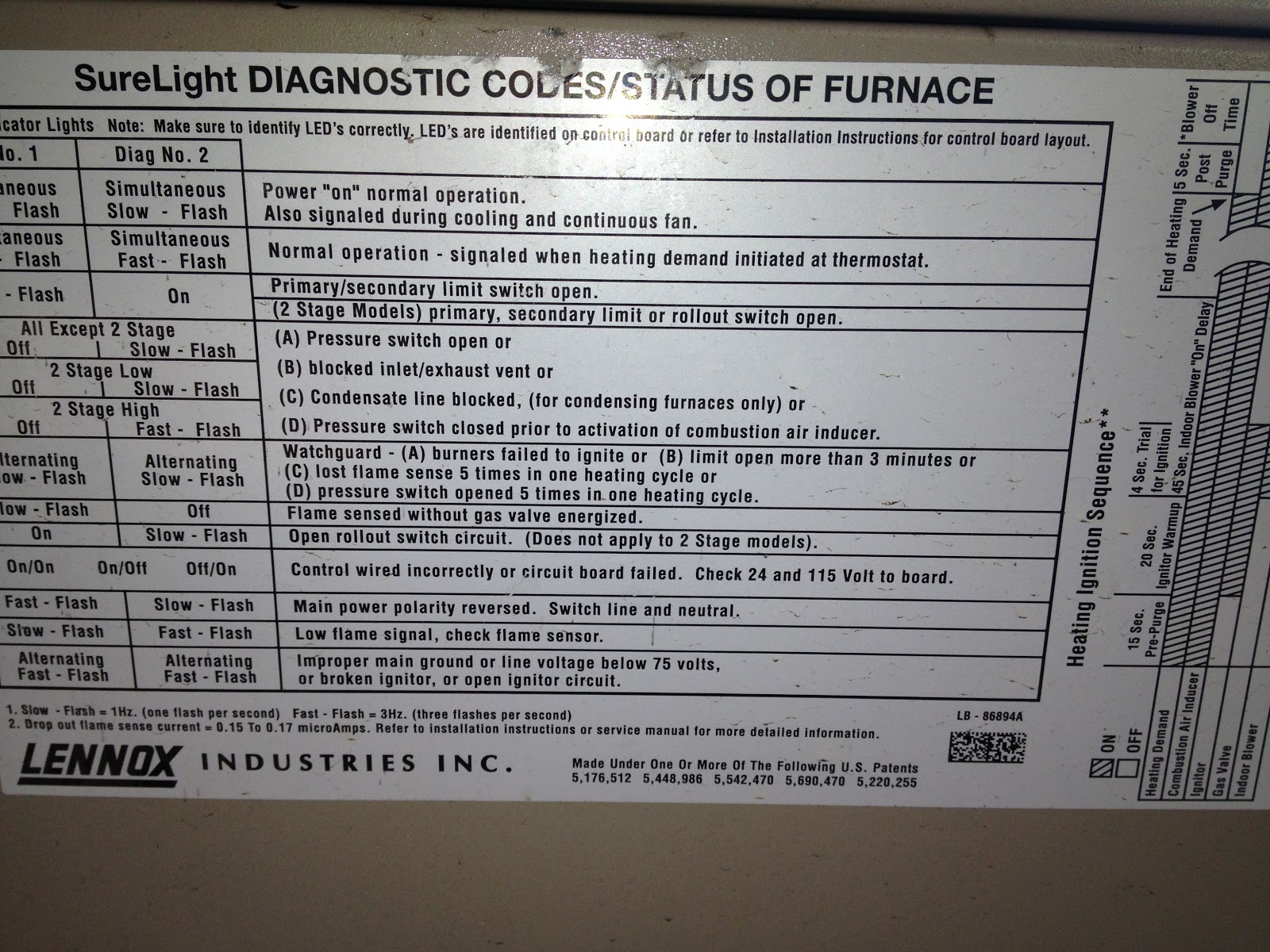

Lennox surelight furnace diagnostic code. 5 gas valve opens for a 4 second trial for ignition. If you know what the light codes mean you can use the codes to narrow down the potential reasons why the furnace is not operating properly. Ergizes w of the furnace control with 24vac. It comes equipped with two led lights that help you troubleshoot what may be wrong with the boards controls or the hvac system.

Gas furnaces el296uhe. Lennox surelight furnace diagnostic code. A 20 second warm up period begins. Page 42 operation sequence g23x 5 and 6 models with surelight control 1 when there is a call for heat w1 of the thermostat en 4 surelight control energizes ignitor.

You may also have bad wires or loose wires if you are getting. Find the most common problems that can cause a lennox furnace not to work and the parts instructions to fix them. Yes from what you told me about lennox furnace diagnostic codes i think my. Prior to ignition a pre purge cycle.

What is it you need help understanding. The wiring diagram on the opposite hand is particularly beneficial to an outside electrician. Combustion air inducer is operated by the integrated furnace control. Lennox manufactures two main types of circuit boards depending on the model of the hvac system.

A lennox 80mgf series furnace has an internal control board with a led diagnostic light feature. I need some help figuring out these lennox furnace diagonostic codes. I have a lennox surelight elite series surelight statusdiagnostic codes diag no 1 off diag no 2 slow flash pressure switch open or has opened 5 times during a single call for heat or blocked inlet read more. A special code sequence of fast flashes on both led lights also show if there are loose wires or a problem with the ignition code.

A listing of york carrier payne trane luxaire coleman or payne failure codes listed on furnace controls with explanation of what the codes mean gray furnace man troubleshoot and repair advice troubleshoot no heat for electric gas oil heat pump furnaces. The simplest approach to read a home wiring diagram is to begin at the source or the major power supply. Surelight integrated furnace control contains all necessary controls and relays to operate furnace.
