Could you possibly help out with mine i have a logic combi 30 also.

Logic combi 30 diagram. Boiler diagrams spare parts and user manuals for ideal logic combi 30 boiler exploded view 24 hour delivery on genuine manufacturer boiler spares 30 day money back guarantee. Database contains 12 ideal logic combi 24 manuals available for free online viewing or downloading in pdf. Hive wiring for a logic 30 combi. User manuals guides and specifications for your ideal logic combi 24.

Ideal logic combi installation and servicing 33. Ideal logic combi 30 manual. Im trying to do the exact same thing and just use the heating side of a hive 2 heating and hot water with my logic combi 30 just wired up permanent neutral permanent live and heating nc. Attached is the wiring diagram for the receiver.

The logic combi is a wall mounted room sealed condensing combination boiler featuring full sequence automatic spark ignition and fan assisted combustion. Water management abk onwards. Boiler exploded abk onwards. Discussion in plumbing and central heating started by johnse.

Logic combi 24 boiler pdf manual download. Boiler diagrams spare parts and user manuals for ideal logic combi 30 gas management 24 hour delivery on genuine manufacturer boiler spares 30 day money back guarantee. Ideal logic combi 24 manuals user guides. Thats all that was wired up on my combi to the old honey well stat.

Exploded view diagrams and parts lists for the ideal logic combi 30 manual. Logic combi 24 30 35 when replacing any part on this appliance use only spare parts that you can be. I have an ideal logic 30 combi boiler and had a honeywell r6660d receiver and simple wireless thermostat. Based on the diagram below from the logic 30 boiler manual.

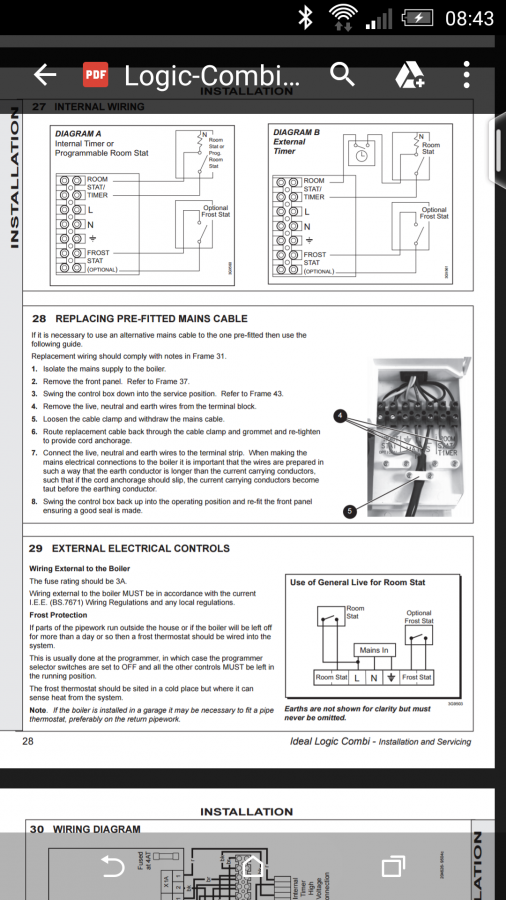

As you can see it only has 5 wires earth live neutral t1 t2. Replacing pre fitted mains cable 30. Commissioning and testing 32. My mains goes into the boiler first.

External electrical controls 30. Check out our low prices on heating spares from leading manufacturers. Logic combi 35 logic combi 30. View and download ideal logic combi 24 installation and servicing online.
