How A Treble Bleed Circuit Can Affect Your Tone

Newest Fender Treble Bleed Circuit Values Telecaster

Vintage Noiseless Wiring And Treble Bleed Telecaster

Treble bleed mod one frustration with the telecaster wiring setup is the treble loss as volume is rolled back.

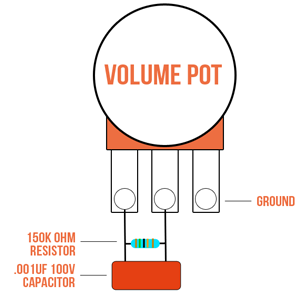

Telecaster wiring diagram with treble bleed. A common problem you may have noticed is that as you rotate your guitars volume pot counterclockwise towards zero an unwanted side effect is that you lose high end along with the volume. This quick and easy guitar modification allows the high end of your guitar to come through even when the. The treble bleed mod is a circuit which can help you keep the treble in the guitar signal when youre turning down the volume potentiometer. Unlike traditional treble bleed circuits that involve connecting tiny.

This wiring is referred to as the modern or standard telecaster wiring and is still in use today. Installing a treble mod into a fender telecaster or any guitar is very simple to do. If you experience tonal change when turning down the volume control on your guitar the fender tone saver is a great solution. The solution commonly used to remedy this situation is to employ a treble bleed mod aka volume kit.

1 august 2013 its time to explore the tele wiring that was introduced after 1967. Probably you know that when the volume pot knob is turned a little bit down the guitar signal is quieter and also darker or smoother its loosing some high frequencies. Now that weve analyzed the telecaster dark circuit that fender used from mid 1952 up to late 1967 factory telecaster wirings pt. Understanding the treble bleed mod.

Wanted to set up my tele with treble bleed circuit and because stewmac has always had great products so i ordered one. To understand why tele wiring changed in 1967 it. This telecaster harness features a treble bleed circuit on the volume control which counteracts this and retains the high end frequencies at lower. Placement went smoothly and sounds great.

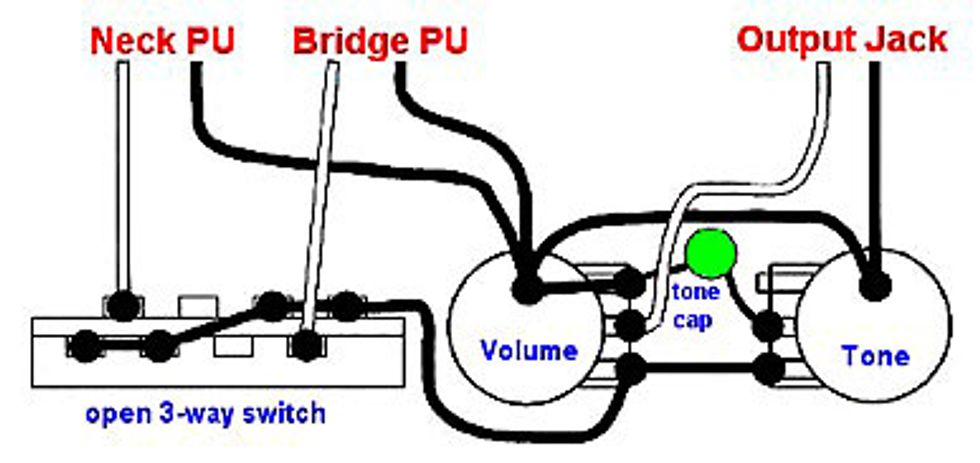

Switch volume pot 250k tone pot 250k neck pickup top view control plate bottom view hot ground capacitor jack treble bleed telecaster wiring diagram.
